Reel Rewinding Station
Web Viewing System
Automatic Register Control System
Hot Air Dryer Chamber System
4/6 Color Printing Station
Reel Unwinding Station
-
Max. Speed
200 Meters/Minute -

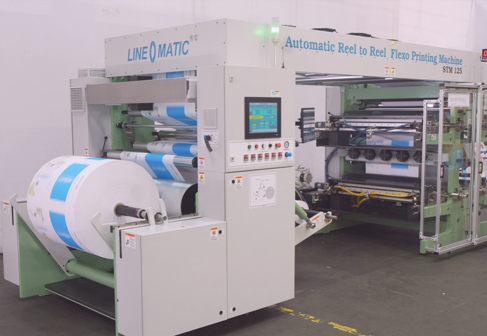

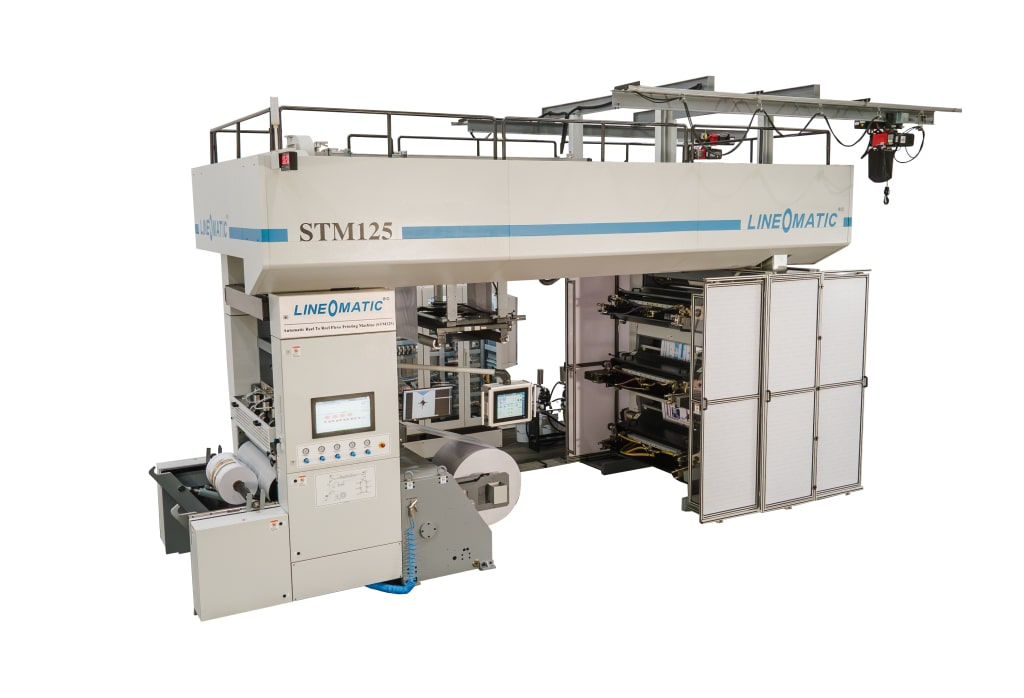

Automatic Reel To Reel Flexo Printing Machine
- STM 125
STM 125 includes Reel Unwinding Station, 6 color Printing station ( 6C Printing on One Side), Hot dryer unit and Reel Rewinder station and control components.
Request a Quote
Download Brochure
- Paper Bag Manufacturer
- Flexo / Half Tone Printing Application
- Cup Stock Printing
- Accurate print registration by Automatic Register Control system
- Pneumatic cylinder lifting arrangement to stir the ink
- Individual servo controlled impression roll
- Inter color and final chamber for hot air drying system
- Web viewing system
- Two Color Printing On Both Side
- Overhead Crane for Flexo Graphic Roller Loading and Unloading
- Center Slitter Unit
- Varnish Coating Unit
Technical Specification
| Model | STM 125 |
|---|---|
| Web Speed* (meters/minute) | 200 |
| Reel Width (mm) | 400 to 1250 |
| Reel Diameter (mm) | 1300 |
| Reel Weight (kgs.) | 1400 |
| Core ID (mm) | 76.2 |
| Printing Width (mm) | 1200 |
| Repeat Printing Width (mm) | 340 to 1200 (Variation of 5mm) |
| Inking System | Chamber Doctor blade system with double blade |
| Paper GSM | 45 to 250 |
| Rec. Floor Space (L x W x H) (meter) | 12 X 8 X 6 |
| *Machine Speed depends on Print length & Print area on web. | |
