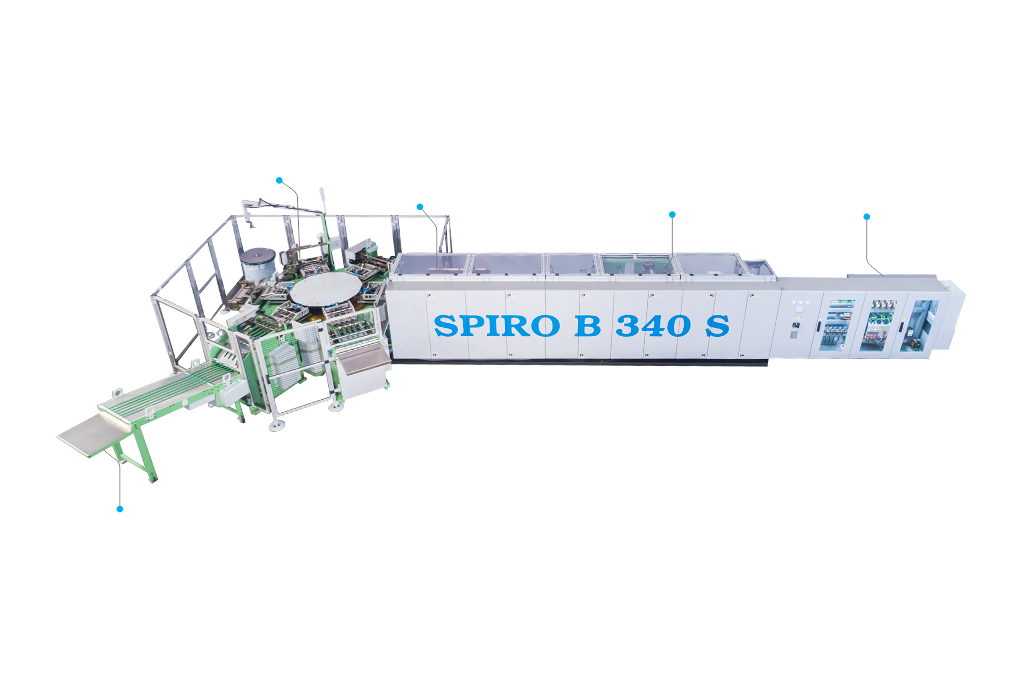

SPIRO B 340 S

Infeed Bunch Conveyor Unit

Manual counted bunch feeding
Infeed Bunch Conveyor Unit

Punching Unit

Multiple hole punch facility
Punching Unit

Round Corner Cutting Unit

Inline & well defined round corner cutting
Round Corner Cutting Unit

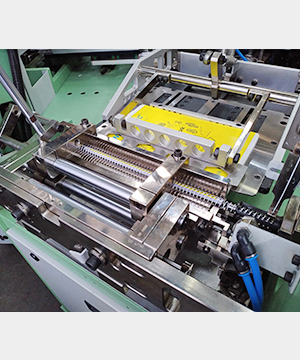

Single Ring Unit

Accurate insertion of wire with U-locking facility
Single Ring Unit

Delivery Table

Book collection with apposite stacking
Delivery Table
  • Arrow Image Max. Conv. Strokes*25 cycles/minute
  •
        CE logo

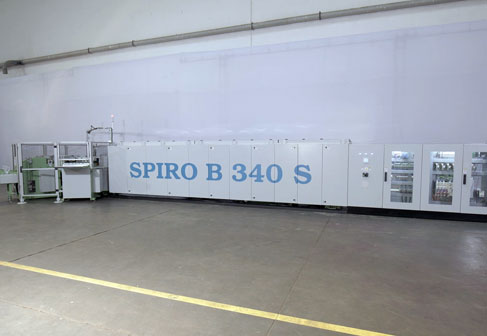

Automatic Binding Machine for Single Ring Books

  • Spiro B340 S

Spiro B340 S consists of 1 No. manual bunch feeding unit, 1 No. layer separating unit, 1 No. punching & collecting unit, 1 No. round corner cutting unit, 1 No. single ring binding unit, exit conveyor, book delivery table, waste removal suction blower, lubrication system and centralized control panel (PLC).

Single Ring Book Manufacturers Needing
  • Economical solution
  • High quality end products
  • Multipurpose use
  • Simple & fast on-screen machine setup
  • Setup process by H.M.I
  • Fast & easy size adjustment for different paper formats
  • Punching dies for all types & sizes of holes
Universal Round Corner Cutting Unit
  • Strokes - 25 cycles/min
  • Corner radius - 10 / 12 mm
In-Line Shrink Wrapping Machine
  • Strokes - 50 / 80 cycles/min

Technical Specification



Model   Spiro B340 S
Book size Bound Edge (mm) 145 to 330
Unbound Edge (mm) 105 to 297
Paper (GSM) ------ 60 TO 220
Punching Section Converting Strokes (cycles/min) 100*
Layer Thickness (mm) 0.5 to 2.5
No. of Layers 2 to 10

For Spiro B340 S

Single Ring Binding Section

Converting Strokes (Cycles / Min) 25*
Product Thickness (mm) 5 mm Pitch 5 to 16
6.35 mm Pitch 5 to 16
8 mm Pitch 8 to 16
10 mm Pitch 10 to 16
Required Floor Space for Spiro B340 S (L x W x H) (meters) 16 x 10 x 4
* Converting Strokes: Depends upon sheet count, book size and GSM of the paper being used.
Punching Unit

Punching Unit

Single Ring Unit

Single Ring Unit

Delivery Table

Delivery Table

Round Corner Cutting Unit

Round Corner Cutting Unit

Infeed Bunch Conveyer Unit

Infeed Bunch Conveyer Unit
