Terra RR

Counting & Collating Unit

Accurate sheet counting
by servo
Counting & Collating Unit

Ream Wrapping Unit

Consistent & quality wrapped reams
Ream Wrapping Unit

Synchro Rotary Cutting Unit

Top & bottom rotary knives
Synchro Rotary Cutting Unit

Slitting Unit

Pneumatically operated circular knives
Slitting Unit

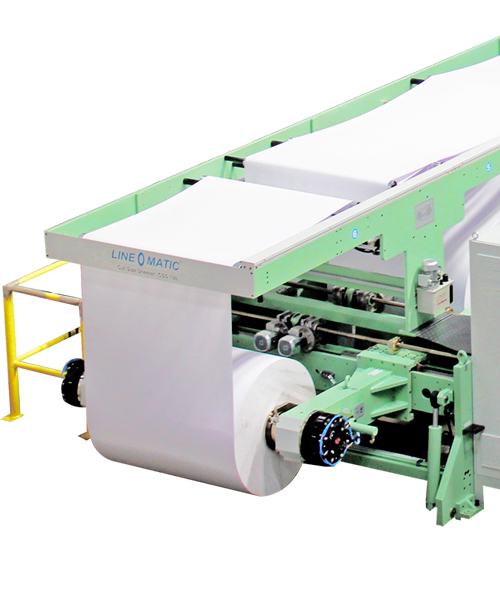

Reel Unwind Stand

Shaft less lifting
Reel Unwind Stand
  • Meter logo Max. Speed* 300 Meters/Minute
  • Start Button Image Pockets: 8 Maximum
  • CE logo

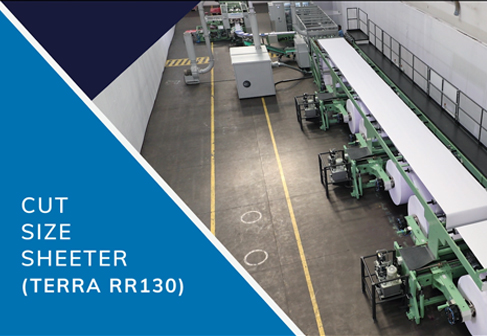

Cut Size Sheeter

  • Terra RR130 | Terra RR130 S

Terra RR130 / 130 S consist of shaftless unwinding three twin reel stations with automatic track & trolley systems, de-curling unit, slitting unit, synchro rotary cutting unit, conveyor unit, collating unit, robot unit, ream wrapping unit and centralized control panel (PLC).

Paper Mills & Paper Converters Needing
  • High quality end products
  • High level of automation
  • Precise cutting accuracy
  • Low production cost
  • Minimum manpower
  • Consistent performance
  • Excellent wrapping qualit
  • Higher profitability & longer life
  • Easy to operate & low in maintenance
  • Splice Detection Unit
  • Digital Batch Code Printer
  • Digital Synchro Unit for Multiple Size

Technical Specification

Model Terra RR130 Terra RR130 S Terra RR170
Web Speed** (meters/minute) 200 300 250
Ream Wrapping Strokes** (cycles/minute) 50 60 to 72 80
Reel Width (mm) 850 to 1300 850 to 1300 860 to 1700
Reel Diameter (mm) 1600 1600 1600
Reel Weight (Kgs.) 2500 2500 3400
Core I.D. (mm) 152.4 152.4 152.4
No. of Pockets 6 6 8
Max. Knife Load (GSM) 400 400 500
Max. Cutting Width (mm) 1260 1260 1
Paper (GSM) 70 to 100 70 to 100 70 to 100
Production Capacity* (Tons for 24 hours working) Up to 100 Up to 150 Up to 150
- Terra RR130 / Terra RR130 S can be configured for multiple sizes.
** Number of paper reels will be used/configured based either on Max. machine speed or on
Max. Ream Wrapping Strokes

* Depending upon quality and GSM of paper
Counting & Collating Unit

Counting & Collating Unit

Ream Wrapping Unit

Ream Wrapping Unit

Slitting Unit

Slitting Unit

Synchro Rotary Cutting Unit

Synchro Rotary Cutting Unit

Reel Unwind Stand

Reel Unwind Stand
