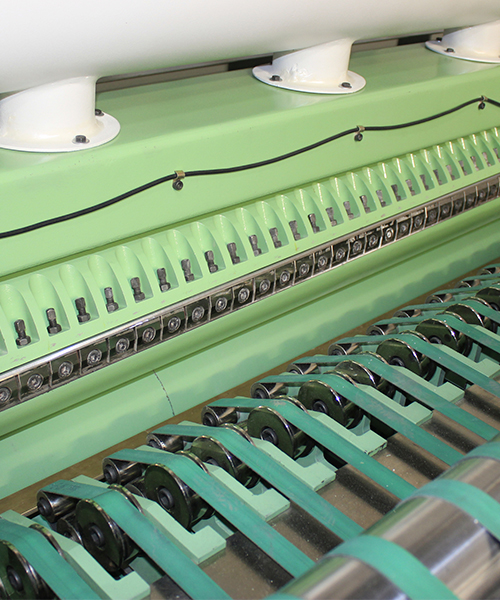

Synchro Rotary Cutting Unit
Top & bottom rotary knives

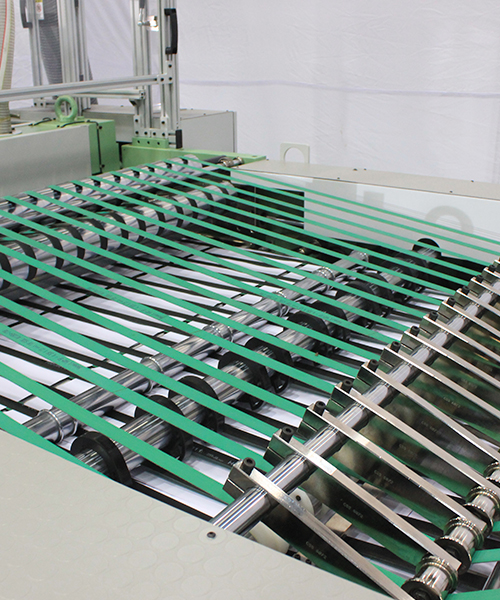

Counting & Collating Unit
Accurate sheet counting by servo
Digital Batch Code Printer

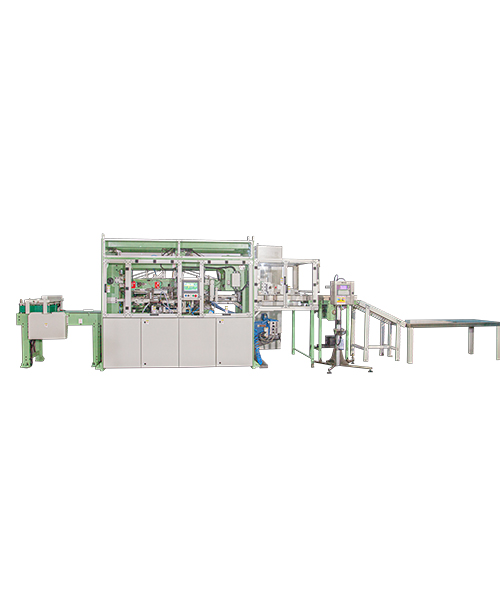

Ream Wrapping Unit
Consistent & quality wrapped reams

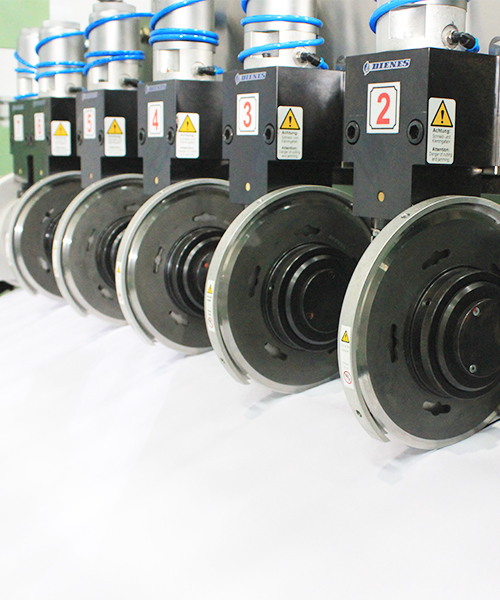

Slitting Unit
Pneumatically operated circular knives

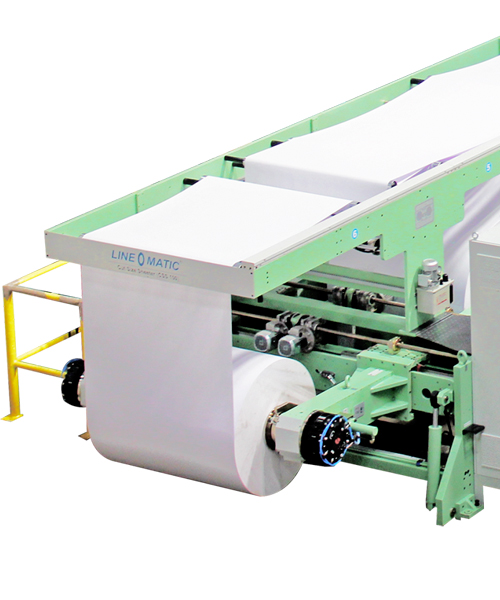

Reel Unwind Stand
Shaft less lifting
-
Max. Speed*
185 Meters/Minute -
Pockets 6
Maximum -
Cut Size Sheeter
- Aqua RR130 | Aqua RR130 S
Aqua RR130 consists of shaft-less unwinding, one twin reel station, a de-curling unit, a slitting unit, a synchro rotary cutting unit, a conveyor unit, a collating unit, a robot unit, a ream wrapping unit, and a centralized control panel (PLC).
Aqua RR130 S consists of shaft less unwinding two twin reel stations,a de-curling unit, a slitting unit, a synchro rotary cutting unit, a conveyor unit, a collating unit, a robot unit, a ream wrapping unit, centralized control panel (PLC)
Request a Quote
Download Brochure
Paper Mills & Paper Converters Needing
- High-quality end products
- High level of automation
- Precise cutting accuracy
- Low production cost
- Minimum workforce
- Consistent performance
- Excellent wrapping quality
- Higher profitability & longer life
- Easy to operate & low in maintenance
- Digital Batch Code Printer
Technical Specification
| Model | Aqua RR130 | Aqua RR130 S |
|---|---|---|
| Web Speed** (meters/minute) | 185 | 185 |
| Ream Wrapping Strokes** (cycles/minute) | 15 | 30 |
| Reel Width (mm) | 850 to 1300 | 850 to 1300 |
| Reel Diameter (mm) | 1400 | 1400 |
| Reel Weight (Kgs.) | 1900 | 1900 |
| Core I.D. (mm) | 76.2 | 76.2 |
| No. of Pockets | 6 | 6 |
| Max. Knife Load (GSM) | 400 | 400 |
| Max. Cutting Width (mm) | 1260 | 1260 |
| Paper (GSM) | 70 to 100 | 70 to 100 |
| Production Capacity* (Tons for 24 hours working) | Up to 30 | Up to 60 |
| ** Number of paper reels will be used/configured based either on Max. Machine Speed or on Max. Ream Wrapping Strokes | ||
| * Depending upon quality and GSM of paper | ||
