Nova Fully Automatic Excerise Book Machine

Control Panel

HMI/PLC with Online Connectivity
Control Panel

Reel Unwind Stand

Shaftless Lifting
nova rb/reel unwind stand

Printing Unit

Durable structure for consistent printing
Novarb Printing Tower

Paper Counting Unit

Counting without changing gears
Novarb Paper Counting Unit

Delivery Table

Variable stacking
Novarb Delivery Table

Separating & Cutting Unit

Heavy& Robust Design for Accurate Cutting
Separating Cutting Unit

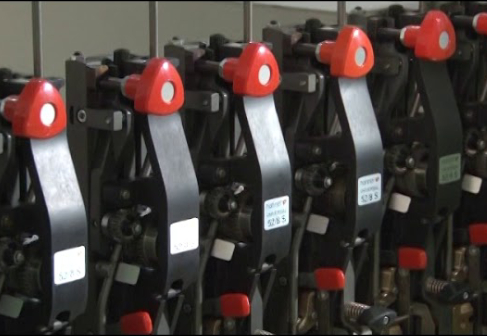

Stitching Unit

Mechanical Wire Pulling
Stitching Unit

Sheet form Inserter

Smooth insertion of covers
Novarb Sheet Form Inserter
  • Meter logo Speed* 300 Meters/Minute
  • Arrow Image Converting Strokes* 50 Cycles/Minute
  • Start Button Image Ups 6 Maximum
  • CE logo

Fully Automatic Exercise Book Machine

  • Nova RB120™
  • Nova RB104 LC™
  • Nova RB104™

Fully Automatic Exercise Book Machine consist of shaft less reel unwinding stand, 2 color printing tower, cross cutting unit, sheet overlapping unit, sheet counting and collating unit, one inserter for pre-printed index sheets, one inserter for pre-printed title covers, wire stitching unit, folding unit, mechanical square back pressing unit, book front cutting unit, book separating cutting unit, book delivery table, waste removal suction blower, lubrication system and centralized control panel (PLC).

Staple Pin Notebook Manufacturers Needing
  • Moderate output
  • High quality end products
  • High level of automation
  • Minimum manpower
  • Consistent performance
  • Excellent quality output
  • Longer life
  • Easy to operate & low in maintenance cost
Auto Splicer
  • Splicing speed - 90 m/min
Side Pile Delivery Unit
  • Pile height - 900 mm
Stand Alone Shrink Wrapping Machine
  • Strokes - 50 / 80 cycles/min

Technical Specification

Model Nova RB104™ Nova RB104 LC™ Nova RB120™
Web Speed* (meters/minute) 300 300 300
    (250 for drawing book)
Converting Strokes* (cycles/minute) 50 50 50
Number of Ups (max.) 5 5 6
Reel Width (mm) 400 to 1040 400 to 1040 600 to 1200
Printing Width (mm) 400 to 1030 400 to 1030 600 to 1190
Reel Diameter (mm) 1400 1400 1400
Core I.D. (mm) 76.2 76.2 76.2
Reel Weight (kgs.) 1500 1500 1700
Printing Tower 2 color flexo unit each side 2 color flexo unit each side 2 color flexo unit each side
Printing & Cutting Length (mm) 290 to 450 (Variation of 5 mm) 290 to 700 (Variation of 5 mm) 290 to 450 (Variation of 5 mm)
Sheet Count 4 to 50 sheets 4 to 50 sheets 4 to 50 sheets
  (16 to 200 pages) (16 to 200 pages) (16 to 200 pages)
Paper (GSM) 45 to 70 45 to 70 45 to 70
Index & Title (GSM) 50 to 600 50 to 600 50 to 600
Max. Stitching Thickness (mm) 5 5 5
Rec. Floor Space (L x W x H) (meters) 26 X 10 X 4 30 X 10 X 4 26 X 10 X 4
* Machine speed and converting strokes will depend on GSM of paper, book size and number of pages per book.
Hi-tech Control Panel with HMI-PLC

Hi-tech Control Panel with HMI-PLC

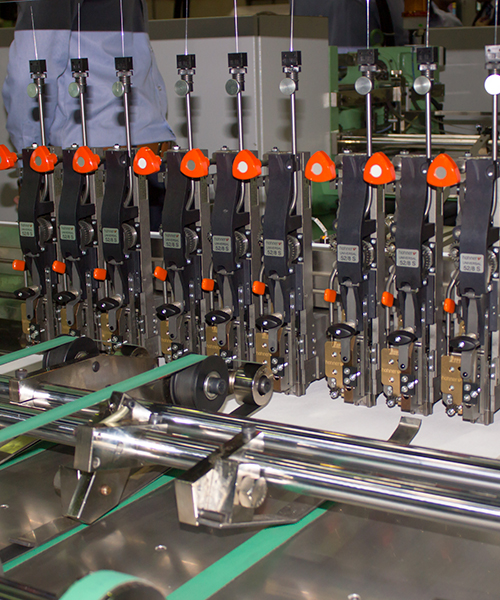

Upgraded Stitching Unit

Upgraded Stitching Unit

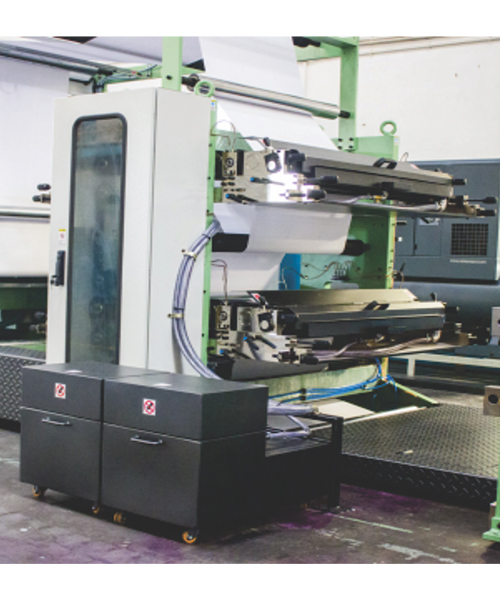

Automatic Ink Circulation System

Automatic Ink Circulation System

Waste Removal Suction Blower

Waste Removal Suction Blower

Book Separating & Cutting Unit

Book Separating & Cutting Unit

Mechanical Square Back Pressing Unit

Mechanical Square Back Pressing Unit

Side Pile Delivery

Side Pile Delivery

No Paper Bunch, No Title Cover

No Paper Bunch, No Title Cover

Automatic Decurling system

Automatic Decurling system

Shaftless Reel Unwind Stand with Reel Dia Sensor

Shaftless Reel Unwind Stand with Reel Dia Sensor
