Auto Splicer

Easy paper joining without stopping the machine

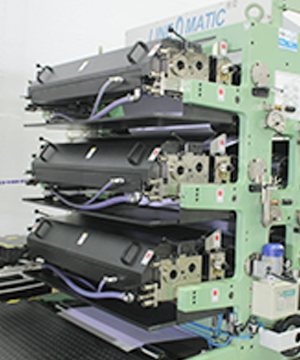

Printing Unit

One-piece robust structure with self-aligned bearings

Paper Counting & Collating Unit

Counting without changing gears

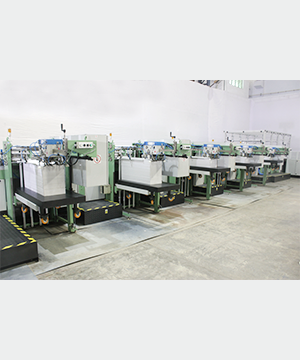

Inserter Unit

Smooth insertion of covers

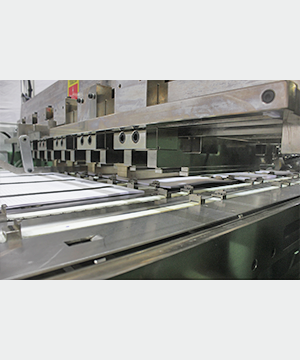

Punching Unit

Sturdy design with multi type hole punch facility

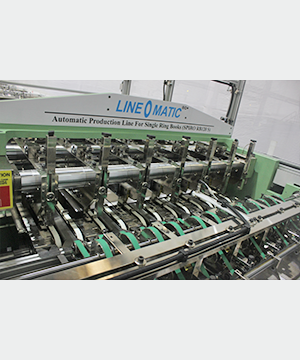

Bunch Gathering Unit

Precise counting with uniform stacking

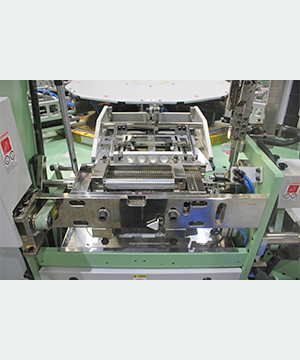

Single Ring Unit

Accurate insertion of wire with U-locking facility

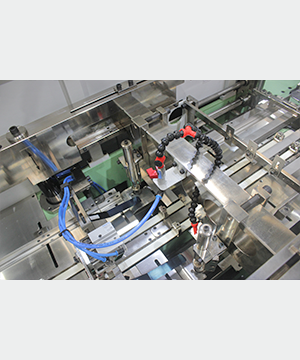

Round Corner Cutting Unit

Inline & well-defined round corner cutting

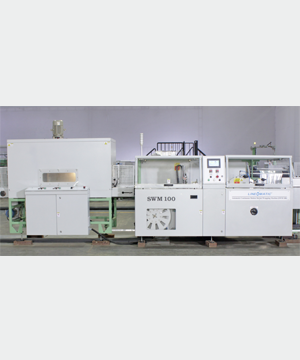

Shrink Wrapping Unit

Inline consistent & quality wrapping

Speed* 300 Meters/Minute
Conv. Strokes* 50 Cycles/Minute
Ups 6 Maximum

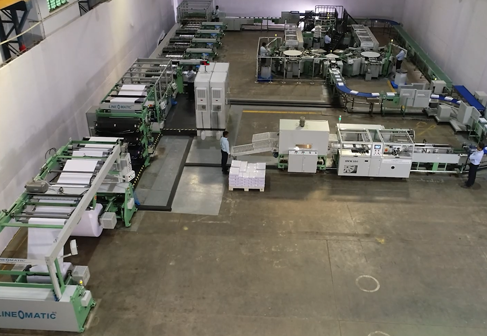

Automatic Production Line for Single Ring Books

Spiro RB120 S I Spiro RB120 D

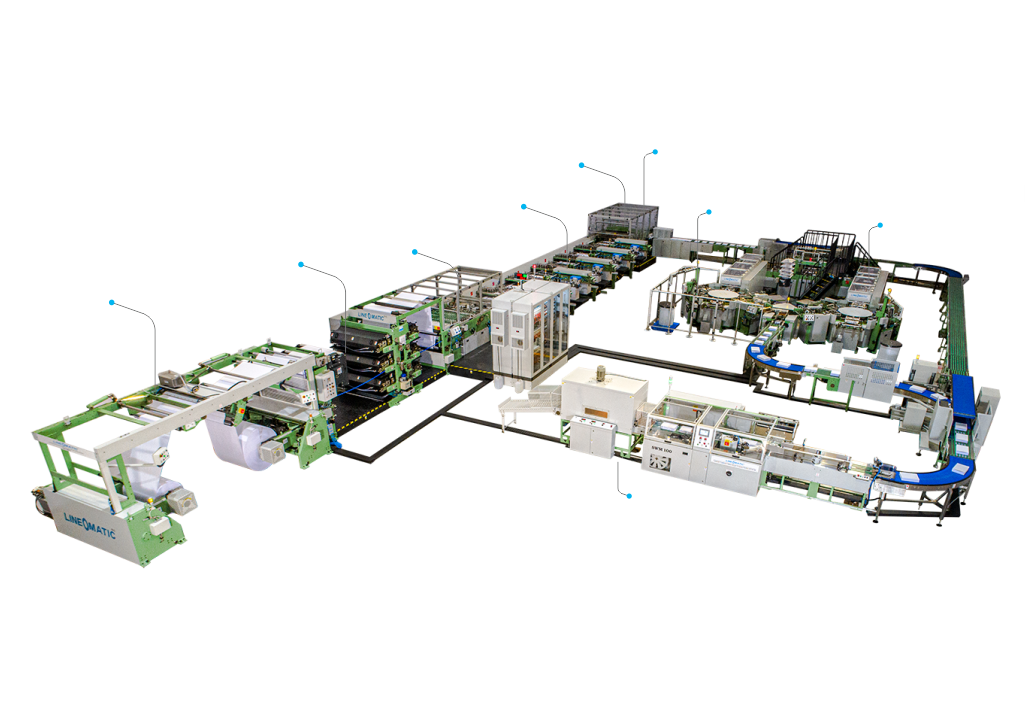

Spiro RB120 S consists of Auto splicer, Ruling or Flexo printing tower, Cross cutting unit, Sheet overlapping unit, Sheet counting and collating unit, 5 Nos. of inserters for pre-printed title cover, Hole punching unit, Partition cutting unit, Bunch gathering unit, Robot conveyor unit, Intermediate conveyor, Round corner cutting unit, Single ring binding unit, Book delivery table, Waste removal suction blower, Lubrication system and Centralized control panel (PLC) with inline Shrink wrapping unit.

IDEal for
Advantages
REC. ADD-ONS
End Products

Filler paper & Single ring Books Manufacturers Needing

High Outout
High quality end products
High level of automation

Low production cost
Minimum manpower
Consistent performance
Excellent quality output
Short payback period
Higher profitability & longer life
Easy to operate & low in maintenance

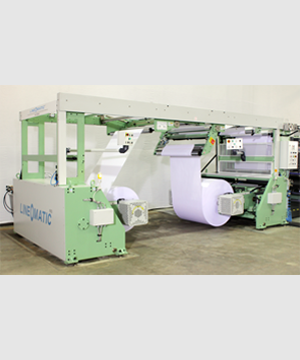

Auto Splicer

Splicing speed - 90 m/min

Chamber Doctor Blade System

Precise inking at high speed

Universal Round Corner Cutting Unit

Strokes - 80 cycles/min

In-Line Shrink Wrapping Machine

Strokes - 50 / 80 cycles/min

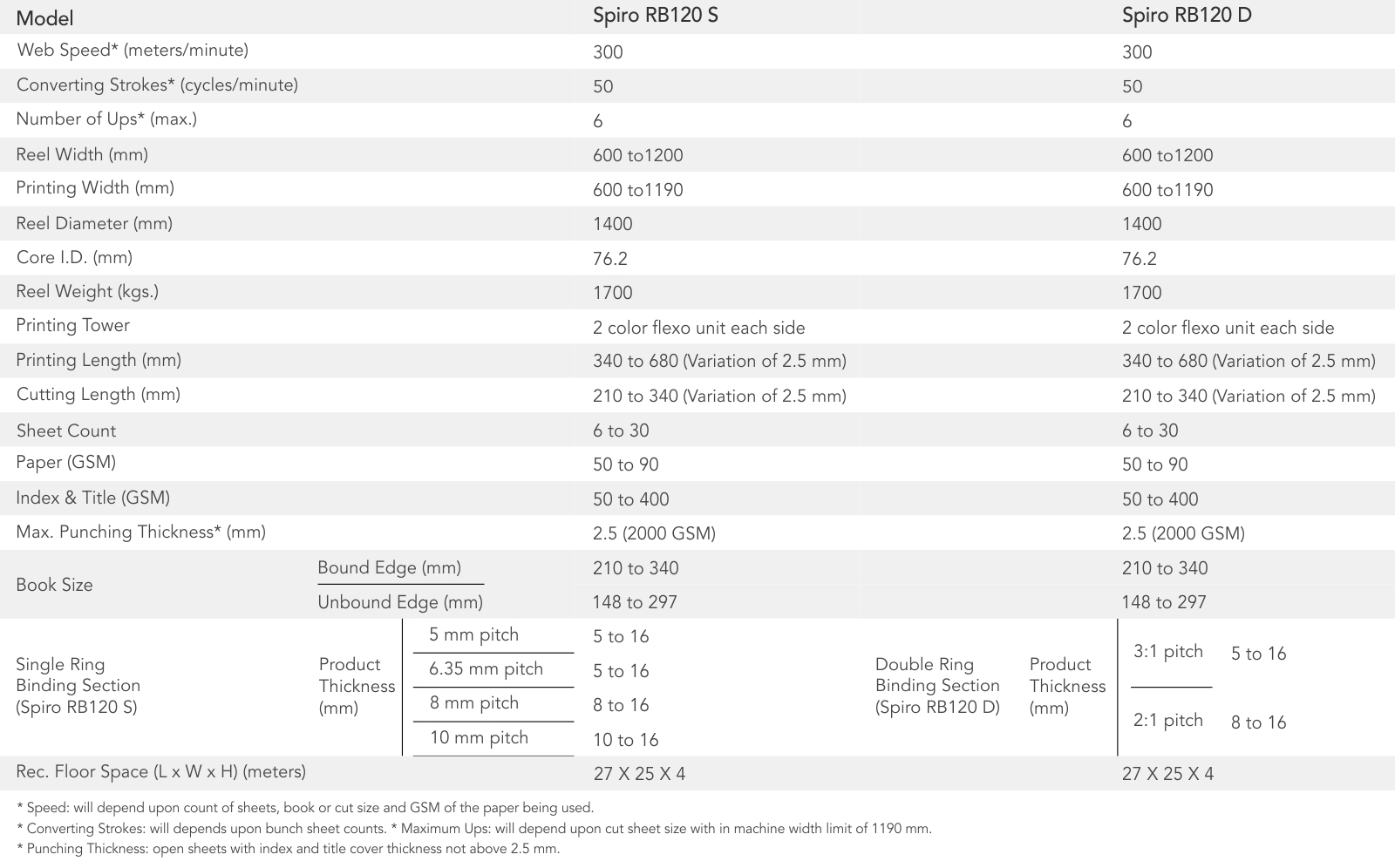

Technical Specification

Model		Spiro RB120 S			Spiro RB120 D
Web Speed* (Meters/minute)		300			300
Converting Strokes* (Cycles/minute)		40			50
Number of Ups* (Max.)		6			6
Reel Width (mm)		600 to 1200			600 to 1200
Printing Width (mm)		600 to 1190			600 to 1190
Reel Diameter (mm)		1400			1400
Core I.D. (mm)		76.2			76.2
Reel Weight (Kgs.)		1700			1700
Printing Tower		2 color flexo unit each side			2 color flexo unit each side
Printing Length (mm)		340 to 700 (variation of 2.5 mm)			340 to 680 (variation of 2.5 mm)
Cutting Length (mm)		210 to 340 (variation of 2.5 mm)			210 to 340 (variation of 2.5 mm)
Sheet Count		6 to 30			6 to 30
Paper (GSM)		45 to 90			45 to 90
Index & Title (GSM)		50 to 400			50 to 400
Max. Punching Thickness* (mm)		2.5 (1750 GSM)			2.5 (1750 GSM)
Book Size	Bound Edge (mm)	210 to 340			210 to 340
	Unbound Edge (mm)	148 (in step of 0.5 mm)			148 to 297
	4 Ups	265 (in step of 0.5 mm)
	5 Ups	215 (in step of 0.5 mm)
	6 Ups	198 (in step of 0.5 mm)
Single Ring Binding Section (Spiro RB120 S)	Product Thickness (mm) 6.3 mm pitch	5 to 16	Double Ring Binding Section (Spiro RB120 D)	Product Thickness (mm) 3:1 mm pitch 2:1 mm pitch	5 to 11 11 to 16
Rec. Floor Space (L X W X H) (meters)		27 X 25 X 4			27 X 25 X 4
* Speed: will depend upon count of sheets, book or cut size and GSM of the paper being used. * Converting Strokes: will depends upon bunch sheet counts. * Maximum Ups: will depend upon cut sheet size with in machine width limit of 1200 mm. * Punching Thickness: open sheets with index and title cover thickness not above 2.5 mm.
