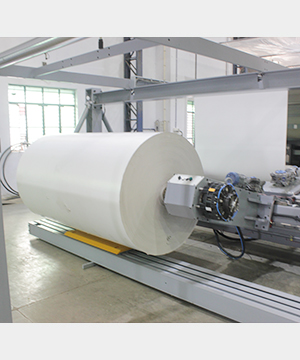

Reel Unwind Stand
Shaft less lifting

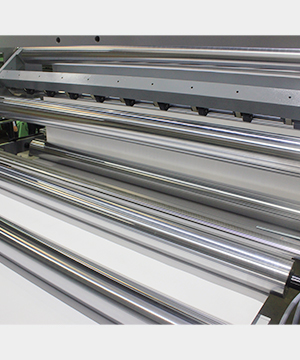

Decurling Unit
Reduces curl

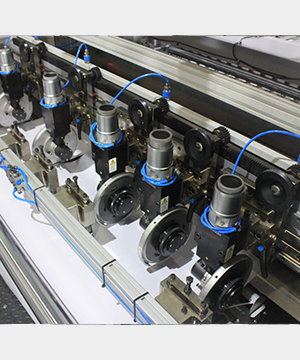

Slitting Unit
Pneumatically operated circular knives

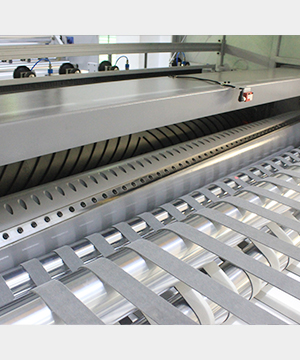

Synchro Rotary Cutting Unit
Digital servo drive cutting system

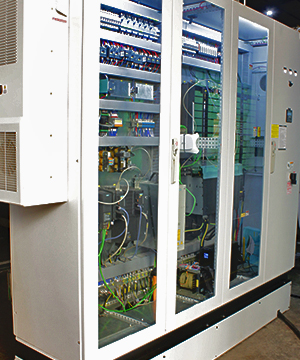

Control Panel
HMI/PLC with online connectivity

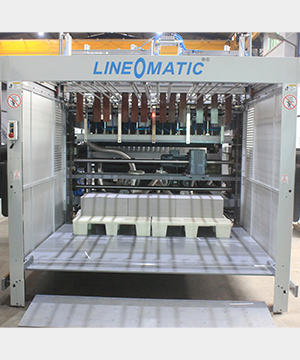

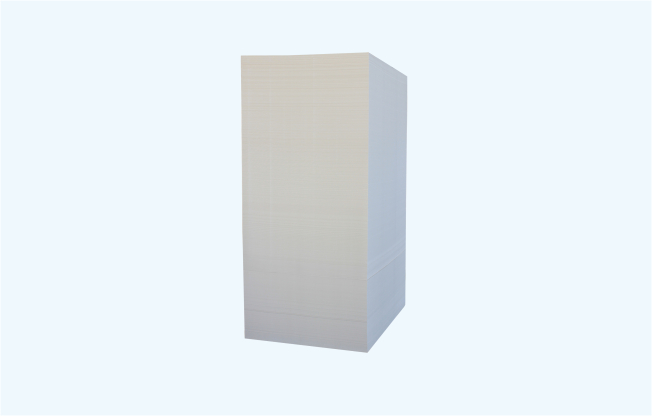

Pile Delivery Unit
Uniform stacking
-
Speed*
300 Meters/Minute -

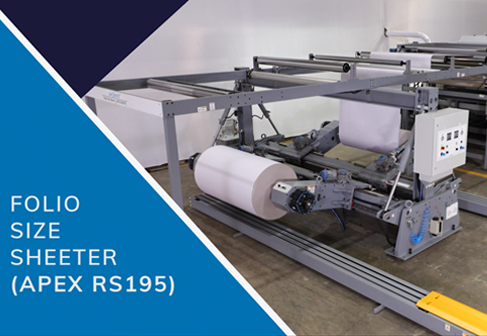

Folio Size Sheeter
- Apex RS165 I Apex RS195

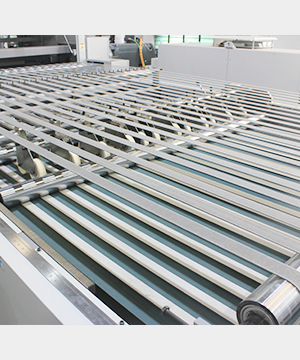

Folio Size Sheeter consists of 1 No. twin unwind stand with de-curling (can be configured up to 4 No. twin unwind stand), 2 pocket slitting system, digital synchro cross Cutting unit, paper conveyor unit and pile delivery station with control panel.
Request a Quote
Download Brochure
- Paper Mills
- Paper Traders & Converters
- Sheet Fed Printers
- Publishers
- Setting cut size digitally
- Apply cut size quickly
- Cost effective sheeting with accuracy
- Easy to operate and maintain
- Extra Reel Stand (Twin) - Can be up to 4 No.
- Reel Unwind Stand with Center Arm
- Additional Pocket
- Simultaneous Slitting Knife Adjustment
- Splice Detection Sensor
- Auto Pallet Changeover
Technical Specification
| Model | Apex RS165 | Apex RS195 |
|---|---|---|
| Speed* (meters/minute) | 300 | 300 |
| Reel width (mm) | 400 to 1700 | 400 to 2000 |
| Reel Diameter (mm) | 500 to 1600 | 500 to 1600 |
| Max. Reel Weight (Kgs.) | 3400 | 4000 |
| Core I.D. (mm) | 152.4 | 152.4 |
| Sheet Width (mm) | 350 to 1650 | 350 to 1950 |
| Sheet Length (mm) | 450 to 1650 | 450 to 1650 |
| Cutting Accuracy | ||
| - Sheet Length Accuracy (mm) | ±0.5 < 1000 | ±0.5 < 1000 |
| for Single / Multi Web | ±0.05% > 1000 | ±0.05% > 1000 |
| - Sheet Squareness(%) of Sheet Width | 0.06% | 0.06% |
| Max. Knife Load (GSM) | 1000 | 1000 |
| Max. Slitter Load (GSM) | 600 | 600 |
| Max. Pile Height (Incl. Pallet) (mm) | 1500 | 1500 |
| Max. Pile Weight (Kgs.) | 2800 | 3400 |
| Max. Trimming (mm) | 25 | 25 |
| Material | Paper & Board | Paper & Board |
| * Depending upon quality, GSM of paper, sheet cut length and operator skill. | ||
