Bolt RP

Printing Unit

Durable structure with manual inking arrangement
Boltrp Printing Unit

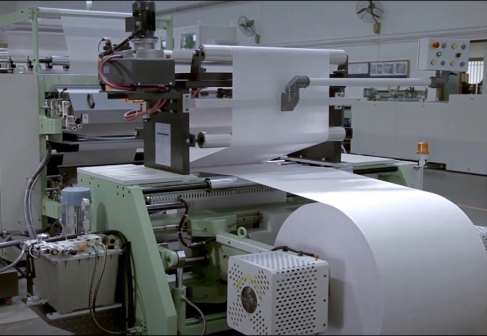

Reel Unwind Stand

Shaft less lifting
Boltrp Reel Unwind Stand

Paper Counting Unit

Counting without changing gears
boltrp Paper Counting Unit

High Pile Delivery

Get ruled sheet with title & index
Boltrp High Pile Delivery Unit

Sheet Form Inserter

Smooth insertion of cover
Boltrp Sheet Form Inserter
  • Meter logo Max. Speed* 400 Meters/Minute
  • Arrow ImageMax. Conv. Strokes* 60 Cycles/Minute
  • CE logo

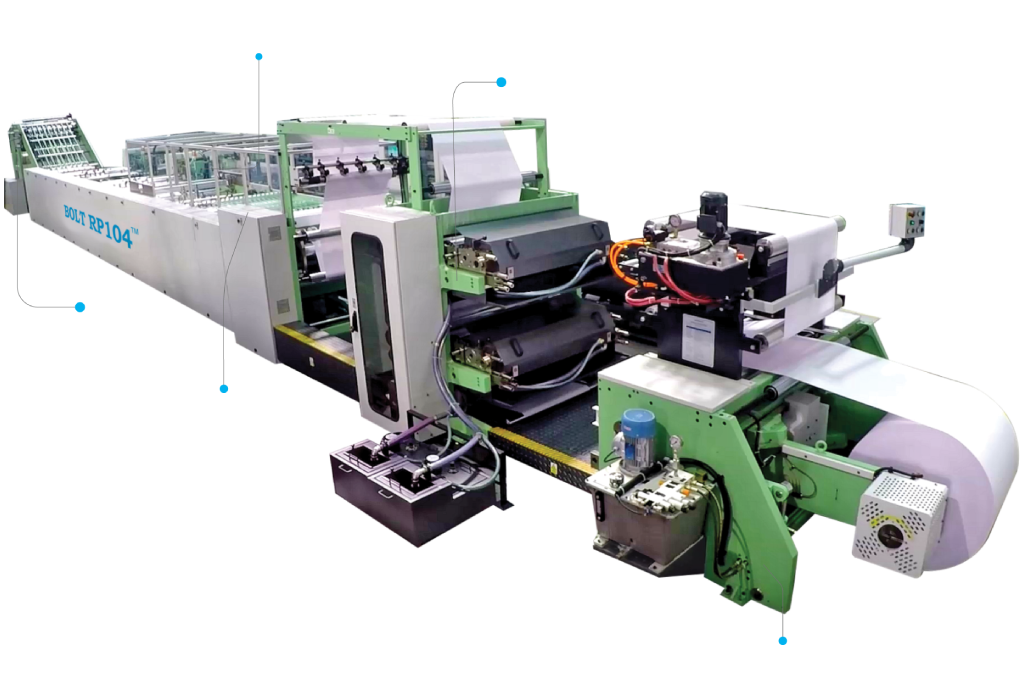

Automatic Exercise Book Machine from Reel to Pile Delivery Station

  • Uno RP104™
  • Bolt RP104™

Automatic Exercise Book Machine from Reel to Pile Delivery Station consists of reel unwinding stand, 2 color printing tower, cross cutting unit, sheet overlapping unit, sheet counting and collating unit, one inserter for preprinted index sheets, one inserter for preprinted title covers, high pile delivery station, lubrication system and centralized control panel (PLC).

Stationery Manufacturers Needing
  • More output
  • High quality end product
  • High level of automation
  • Low production Cost
  • Minimum manpower
  • Consistent performance
  • Excellent quality output
  • Longer Life
  • Easy to operate & low maintenance cost
Auto Splicer
  • Splicing speed - 90 m/min
Chamber Doctor Blade System
  • Precise Inking at high speed
Reel Form Inserter
  • 1 / 2 Col. On one side for the In-line cover pritning up to 230 GSM
Long Cut Capability in Bolt & Nova
  • 460 to 900 mm

Technical Specification

Model Bolt RP104™ Uno RP104™
Web Speed** (meters/minute) 400  200
Converting Strokes* (cycles/minute) 60  40
Reel Width (mm) 400 to 1040 400 to 1040
Printing Width (mm) 400 to 1030 400 to 1030
Reel Diameter (mm) 1400 1200
Core I.D. (mm) 76.2 70 to 100
Reel Weight (Kgs.) 1500 1100
Printing Tower 2 color flexo unit each side 2 color flexo unit each side
Printing & Cutting Length (mm) 290 to 450 (variation of 5 mm) 290 to 450 (variation of 5 mm)
Stack Height (mm) 1600 (28 reams) 1600 (28 reams)
Sheet Count 4 to 50 sheet (16 to 200 pages) 4 to 50 sheet (16 to 200 pages)
Paper (GSM) 45 to 70 45 to 70
Index & Title (GSM) 50 to 600 50 to 600
Rec. Floor Space 24 X 10 X 4 19 X 10 X 4
* Machine speed and converting strokes will depend on quality & GSM of the paper and number of pages.



High Pile Delivery Unit

High Pile Delivery Unit

No Paper Bunch, No Title Cover

No Paper Bunch, No Title Cover

Advance Paper Counting Unit

Advance Paper Counting Unit

Heavy Duty Printing Tower

Heavy Duty Printing Tower

Automatic Decurling system

Automatic Decurling system

Shaftless Reel Unwind Stand with Reel Dia Sensor

Shaftless Reel Unwind Stand with Reel Dia Sensor
