Automatic book Binding Line For Central Sewn Books COMPO B104

Central Thread Sewing Unit

Lock stich with needle cooling
Central Thread Sewing Unit

Control Panel

HMI/PLC with online connectivity
Control Panel

Bunch Flip Unit

Easy flipping of unfolded bunch
Bunch Flip Unit

Folding & Square Back Unit

Precisely central folded bunch
Folding Square Back Unit

Taping Unit

Cotton, pvc & paper tape
Taping Unit

Separating & Cutting Unit

Heavy & robust design for accurate cutting
Separating Cutting Unit
  • Arrow Image Converting Strokes* 20 Cycles/Minute
  • Start Button Image Ups 5 Maximum
  • CE logo

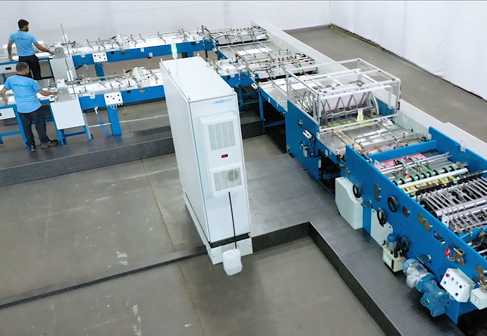

Automatic Book Binding Line for Central Sewn Books

  • Compo B104™

Automatic Book Binding Line for Central Sewn Books consist of 2 No. manual bunch feeding unit, 2 Nos. central thread sewing unit, bunch flipping unit, bunch creasing unit, folding unit, mechanical square back pressing unit, spine taping unit, front cutting unit, book separating cutting unit, book delivery table, waste removal suction blower, lubrication system and centralized control panel(PLC).

Central Sewn Notebook Manufacturers Needing
  • Cost competetiveness
  • High quality end product
  • Excellent Quality Output
  • Longer Life
  • Easy to operate & very low maintenance
Universal Round Corner Cutting Unit
  • Strokes - 50 cycles/min

Technical Specification

Model Compo B104™
Converting Strokes* (Cycles/minute) 30
Number of Ups (max.) 5
Bunch Width (mm) 320 to 450
Bunch Length (mm) 750 to 1040
Sheet Count 10 to 50 sheets (40 to 200 pages)
Paper (GSM) 45 to 70
Sewing Type Lock Stitch
Max. Sewing Thickness (mm) 5
Rec. Floor Space (L x W x H) (meters) 22 X 12 X 4

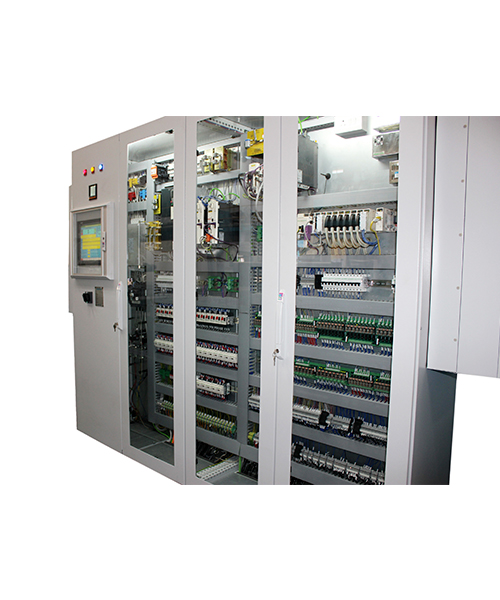

Hi-tech Control Panel with HMI-PLC

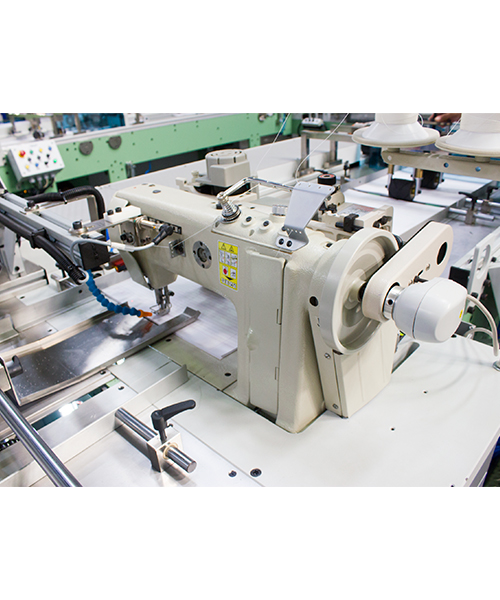

Central Thread Sewing Unit

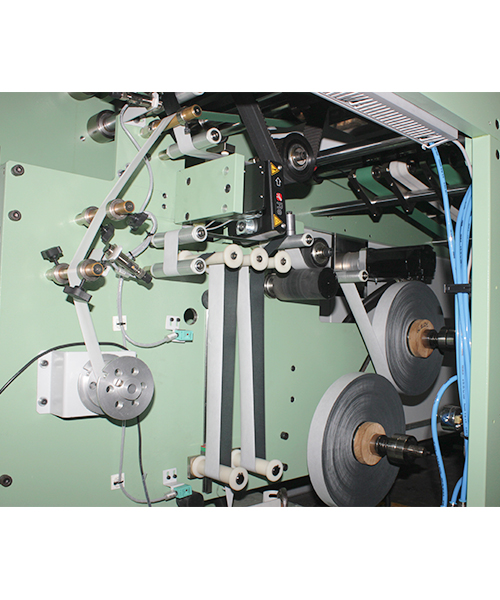

Tapping Unit

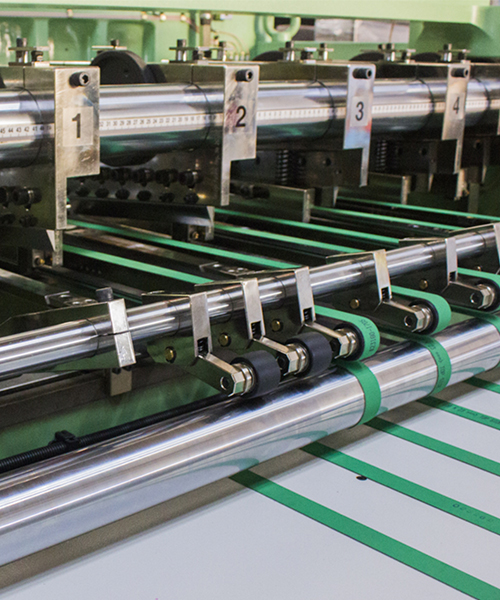

Book Separating Cutting Unit

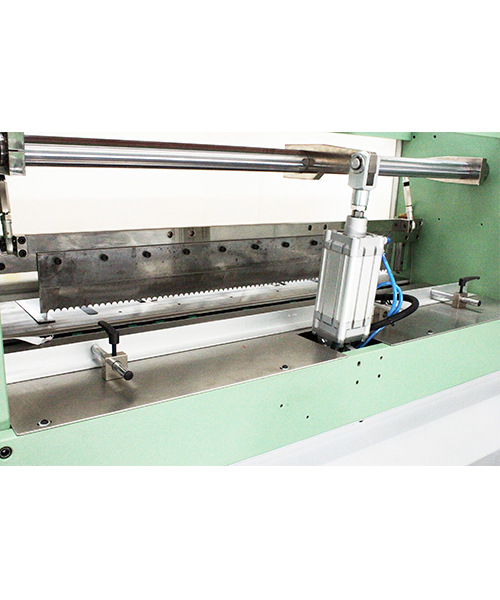

Folding Unit
