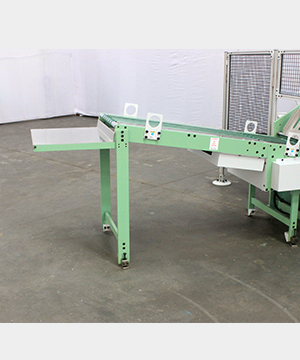

Delivery Table

Book collection with apposite stacking
Delivery Table

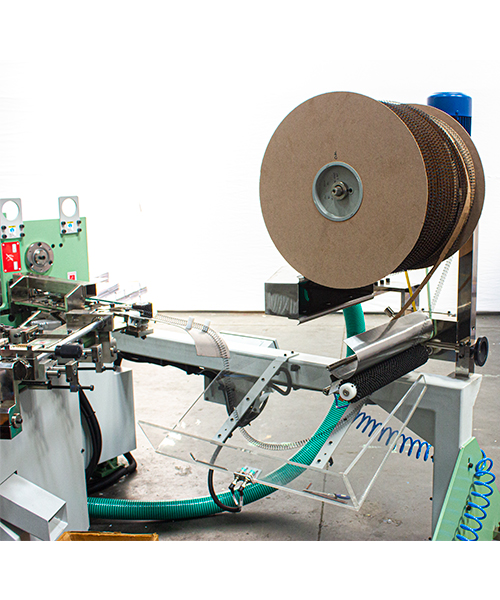

Double Ring Unit

Accurate insertion of double ring
Double Ring Unit

Round Corner Cutting Unit

Inline & well defined round corner cutting unit
Round Corner Cutting Unit

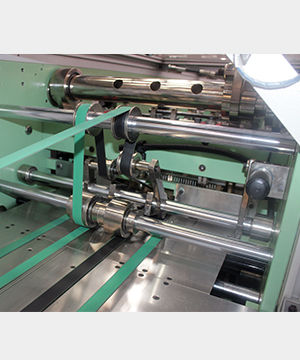

Punching Unit

Multiple hole punch facility
Punching Unit

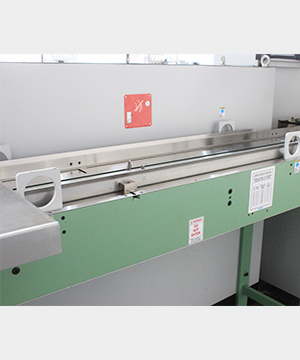

Infeed Bunch Conveyor Unit

Manual counted bunch feeding
Infeed Bunch Conveyor Unit
  • Arrow Image Max. Conv. Strokes*25 cycles/minute
        CE logo

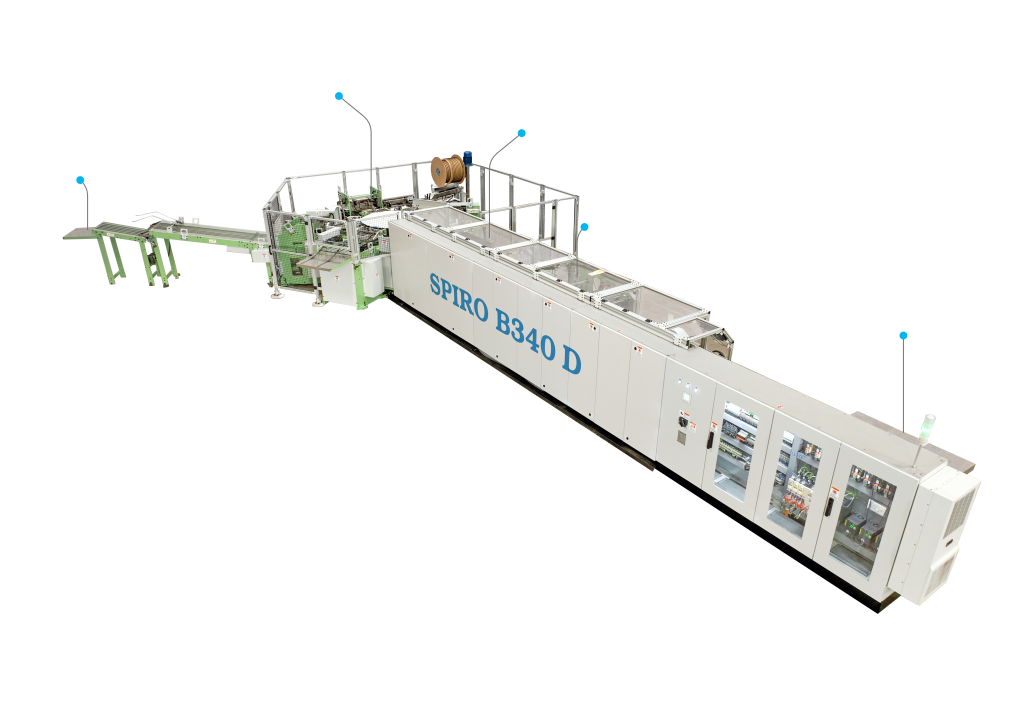

Automatic Binding Machine for Double Ring Books

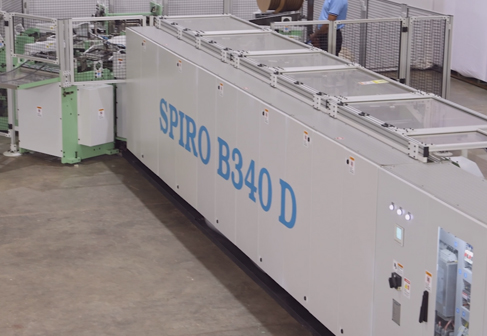

  • Spiro B340 D

Spiro B340 D consists of 1 No. manual bunch feeding unit, 1 No. layer separating unit, 1 No. punching & collecting unit, 1 No. round corner cutting unit, 1 No. double ring binding unit, exit conveyor, book delivery table, waste removal suction blower, lubrication system and centralized control panel (PLC).

Double Ring Book Manufacturers Needing
  • Economical solution
  • High quality end products
  • Multipurpose use
  • Simple & fast on-screen machine setup
  • Setup process by H.M.I
  • Fast & easy size adjustment for different paper formats
  • Punching dies for all types & sizes of holes
Universal Round Corner Cutting Unit
  • Strokes - 25 cycles/min
  • Corner radius - 10 / 12 mm
In-Line Shrink Wrapping Machine
  • Strokes - 50 / 80 cycles/min

Technical Specification


Model   Spiro B340 D
Book size Bound Edge (mm) 145 to 330
Unbound Edge (mm) 105 to 297
Paper (GSM) ------ 60 TO 220
Punching Section Converting Strokes (cycles/min) 100*
Layer Thickness (mm) 0.5 to 2.5
No. of Layers 2 to 10

For Spiro B340 D

Double Ring Binding Section

Converting Strokes (cycles/min) 25*
Product Thickness (mm) 3:1 Pitch 5 to 11
2:1 Pitch 11 to 16
Required Floor Space for Spiro B340 D (L x W x H) (meters) 16 x 11 x 4
* Converting Strokes: Depends upon sheet count, book size and GSM of the paper being used.

Infeed Bunch Conveyer Unit

Round Corner Cutting Unit

Delivery Table

Double Ring Unit*

Punching Unit
