  • Meter logo Max. Speed* 250 Meters/Minute
  • Start Button Image Pockets: 8 Maximum
  • CE logo

Cut Size Sheeter

  • Terra RR170

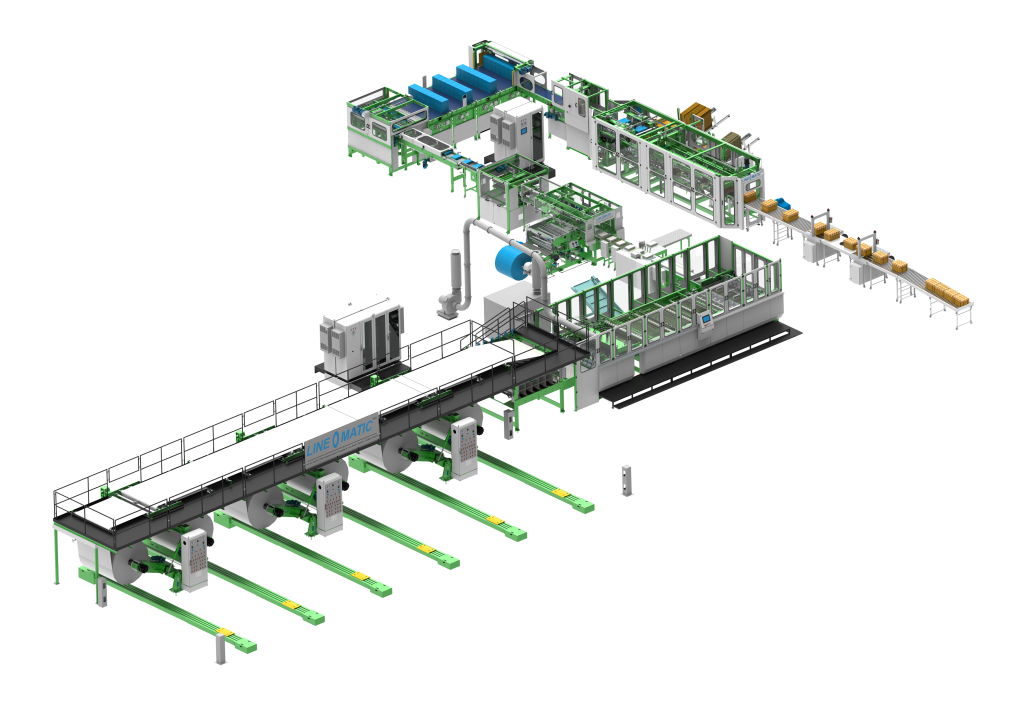

Terra RR170 consist of shaftless unwinding three twin reel stations with automatic track & trolley systems, de-curling unit, slitting unit, synchro rotary cutting unit, conveyor unit, collating unit, robot unit, ream wrapping unit and centralized control panel (PLC).

Paper Mills & Paper Converters Needing
  • High quality end products
  • High level of automation
  • Precise cutting accuracy
  • Low production cost
  • Minimum manpower
  • Consistent performance
  • Excellent wrapping qualit
  • Higher profitability & longer life
  • Easy to operate & low in maintenance
  • Splice Detection Unit
  • Digital Batch Code Printer
  • Ream Inspection System
  • Case Packer Machine

Technical Specification

Model Terra RR170
Web Speed** (meters/minute) 250
Ream Wrapping Strokes** (cycles/minute) 80
Reel Width (mm) 860 to 1700
Reel Diameter (mm) 1600
Reel Weight (Kgs.) 3400
Core I.D. (mm) 152.4
No. of Pockets 8
Max. Knife Load (GSM) 500
Max. Cutting Width (mm) 1680
Paper (GSM) 70 to 100
Production Capacity* (Tons for 24 hours working) up to 150
** Number of paper reels will be used/configured based either on Max. machine speed or on Max. Ream Wrapping Strokes
* Depending upon quality and GSM of paper

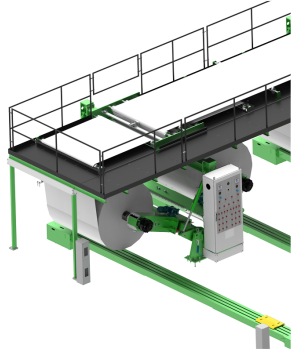

Reel Unwind Stand

Reel Unwind Stand

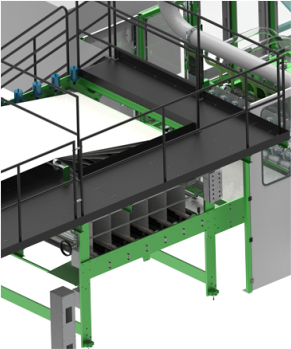

Decurling Unit

Decurling Unit

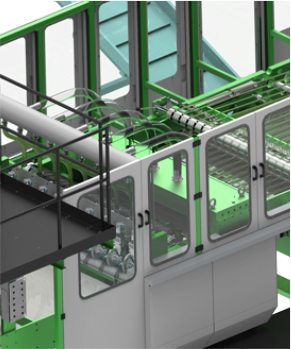

Slitting Unit

Slitting Unit

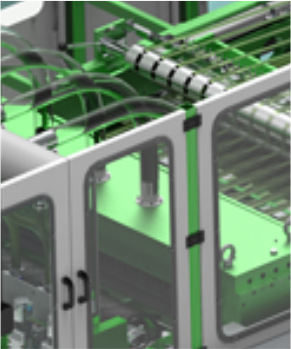

Synchro Rotary Cutting Unit

Synchro Rotary Cutting Unit

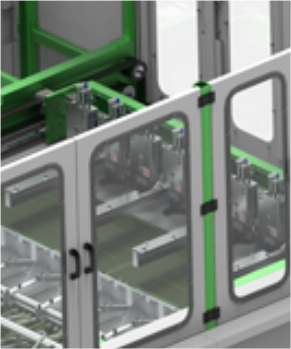

Robotic Ream Pickup

Robotic Ream Pickup

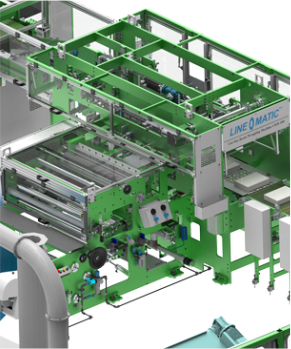

Ream Wrapping Unit

Ream Wrapping Unit

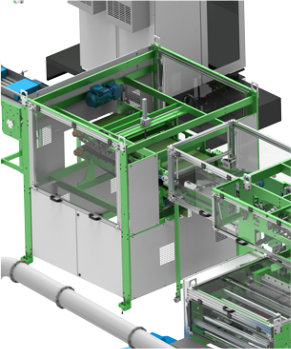

Girth Glue System

Girth Glue System

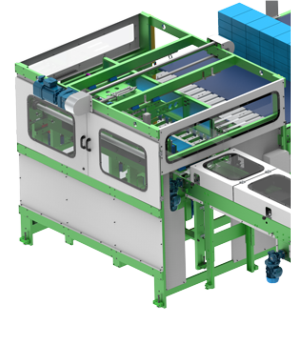

Ream Stacker Unit

Ream Stacker Unit

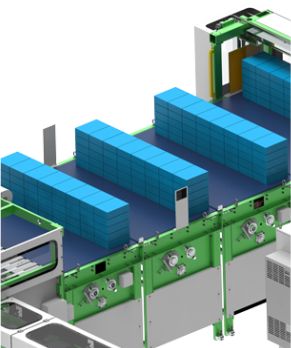

Ream Accumulator

Ream Accumulator

Stack Discharge Conveyor

Stack Discharge Conveyor

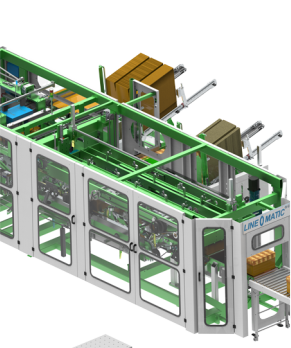

Case Packer Unit

Case Packer Unit

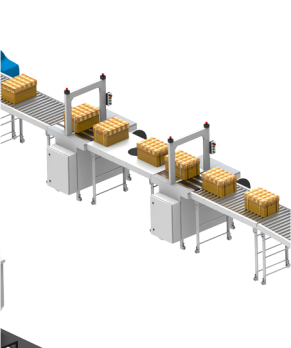

Discharge Roller Conveyor

Discharge Roller Conveyor
