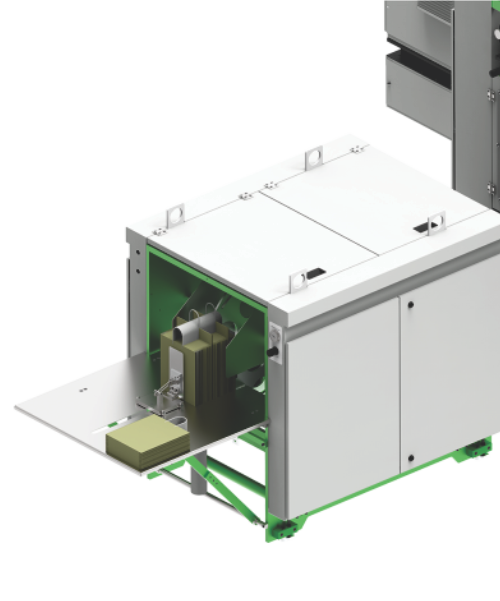

Bag Delivery
Bag Bottom Forming
Tube Forming
Side Sealing Frame
Digital Web Guide
Reel Unwinding Station
-
Max. Speed
260 Bags/Minute -
Square Bottom Paper Bag Machine
- Crown RB200

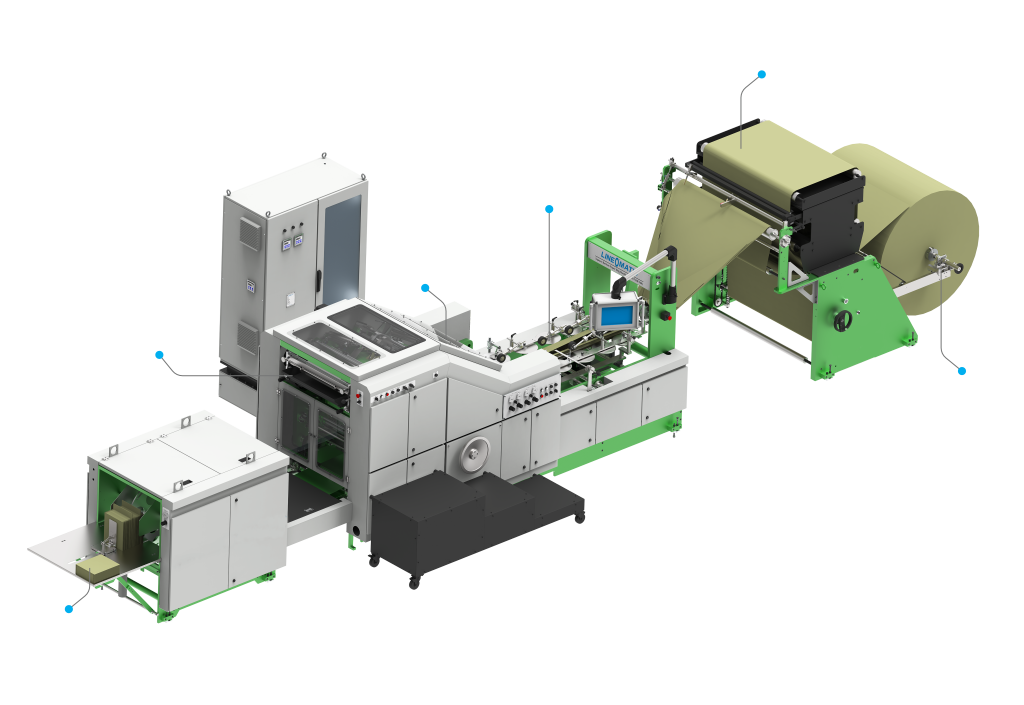

Square Bottom Paper Bag Machine Crown RB200 includes an Unwinding station, a Side sealing frame, a tube-forming component, a bag-bottom-forming component, a bag collection delivery unit, and control components.
Request a Quote
Download Brochure
Paper Bag Manufacturers & Traders Needing
- High-quality end products
- High level of automation
- Small footprint & compact design
- Automatic glue dispensing system
- Print mark sensing system
- Specially designed for FMCG sector
- Thumb Notch
Technical Specification
| Model | Crown RB200 |
|---|---|
| Speed* (bags/minute) | 260 |
| Reel Width (mm) | 300 to 630 |
| Reel Diameter (mm) | 1200 |
| Reel Weight (kgs.) | 900 |
| Paper Reel Core ID (mm) | 76.2 |
| Bag Width (mm) | 90 to 200 |
| Bag Tube Length (mm) | 190 to 350 |
| Bag Bottom Size (mm) | 50 to 100 |
| Bag Paper GSM | 45 to 130 |
| *Machine speed depends on paper GSM, BF of paper, type & quality of paper, size of bag, tube length of the bag, operator’s efficiency and various other factors. |
|
