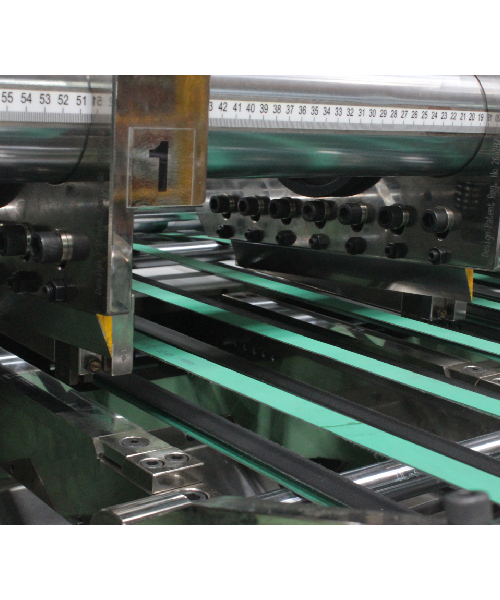

Separating & Cutting Unit
Heavy & Robust Design for Accurate Cutting

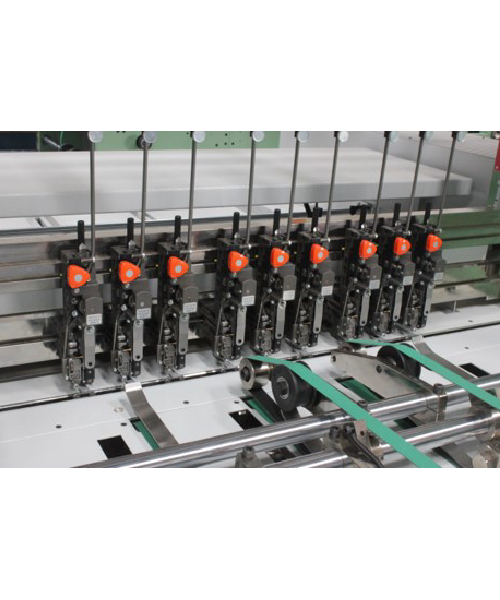

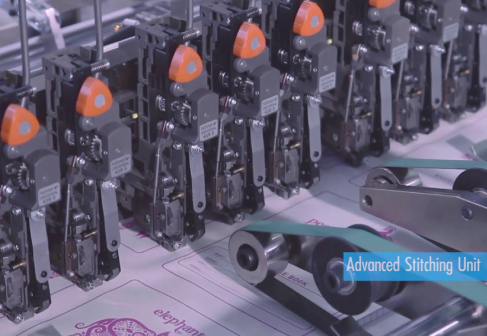

Stitching Unit
Mechanical Wire Pulling
Sheet form Inserter
Smooth insertion of covers

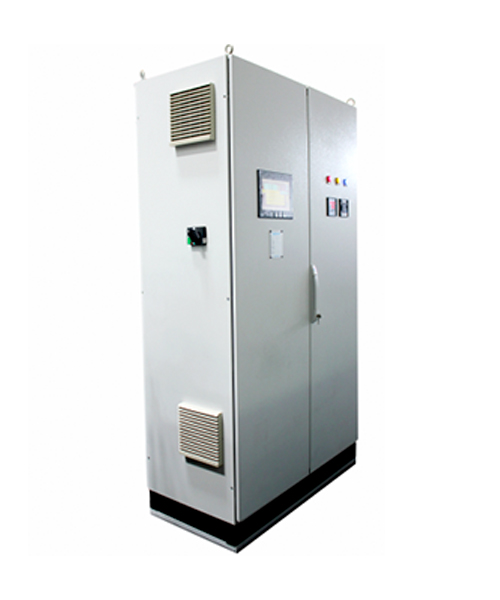

Control Panel
HMI/PLC with Online Connectivity
Reel Unwind Stand
Shaftless lifting to shaft-based lifting

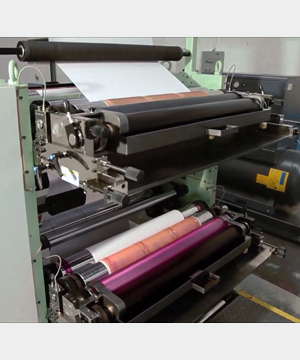

Printing Unit
Durable Structure with Manual Inking Arrangement

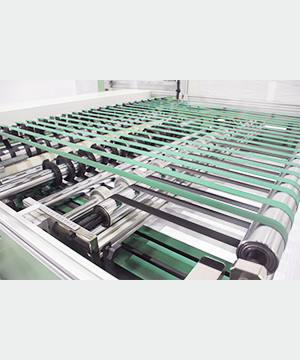

Paper Counting Unit
Counting without changing gears

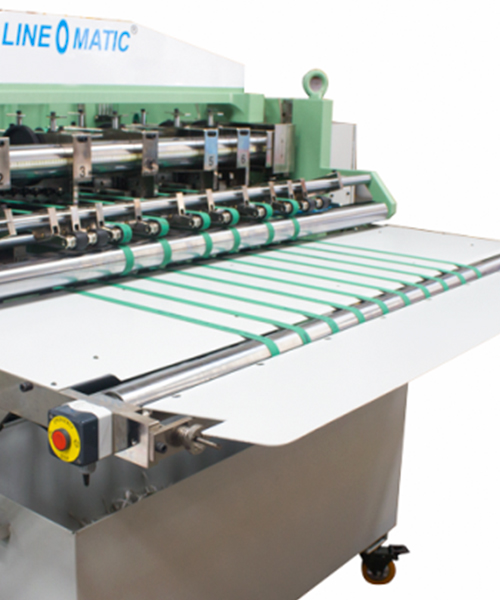

Delivery Attachment
Variable Staking
-
Max. Speed*
200
Meters/Minute
-
Conv. Strokes*
40
Cycles/Minute
-
Ups
4
Maximum
-
AUTOMATIC EXERCISE BOOK MACHINE
- Uno RB104™

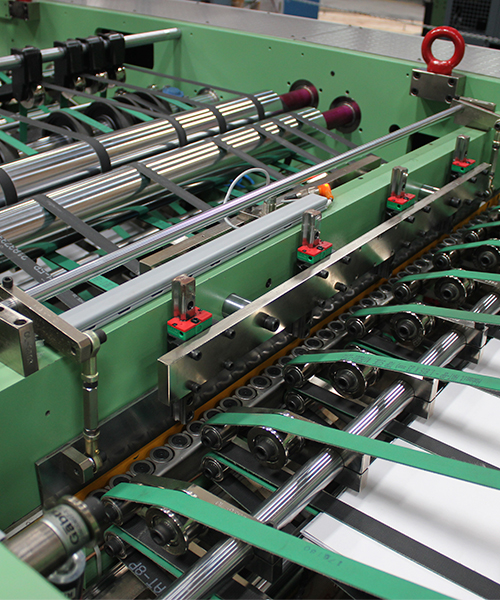

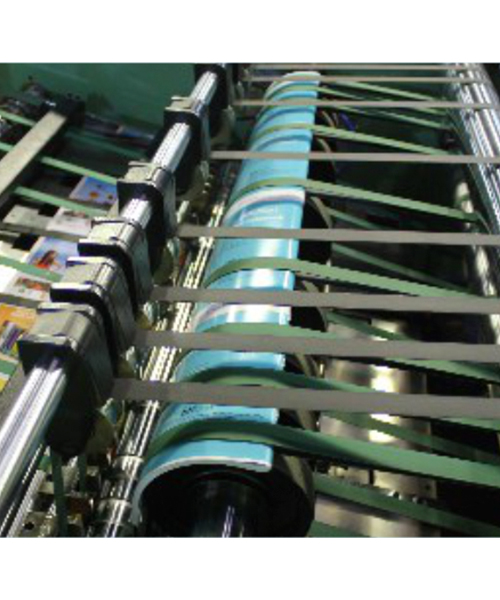

Uno RB104™ consist of shaft based reel unwinding stand, 2 color printing tower, cross cutting unit, sheet overlapping unit, sheet counting and collating unit, inserter for pre-printed title cover, wire stitching unit, folding unit, mechanical square back pressing unit, book front cutting unit, book separating cutting unit with book delivery attachment, trolley for waste collection, lubrication system and centralized control panel (PLC).
Request a Quote
Download Brochure
Staple Pin Notebook Manufacturers Needing
- Machine at affordable price
- Consistent performance
- Excellent quality output
- Longer life
Stand Alone Shrink Wrapping Machine
- Strokes - 50 / 80 cycles/min
Technical Specification
| Model | Uno RB104™ |
|---|---|
| Web Speed* (meters/minute) | 200 |
| Converting Strokes* (cycles/minute) | 40 |
| Number of Ups (max.) | 4 |
| Reel Width (mm) | 400 to 1040 |
| Printing Width (mm) | 400 to 1030 |
| Reel Diameter (mm) | 1200 |
| Core I.D. (mm) | 70 to 100 |
| Reel Weight (kgs.) | 1100 |
| Printing Tower | 2 color flexo unit each side |
| Printing & Cutting Length (mm) | 290 to 450 (Variation of 5 mm) |
| Sheet Count | 4 to 50 sheets (16 to 200 pages) |
| Paper (GSM) | 45 to 70 |
| Index & Title (GSM) | 50 to 600 |
| Max. Stitching Thickness (mm) | 5 |
| Rec. Floor Space (L x W x H) (meters) | 24 X 10 X 4 |
| * Machine speed and converting strokes will depend on GSM of paper, book size and number of pages per book. | |
