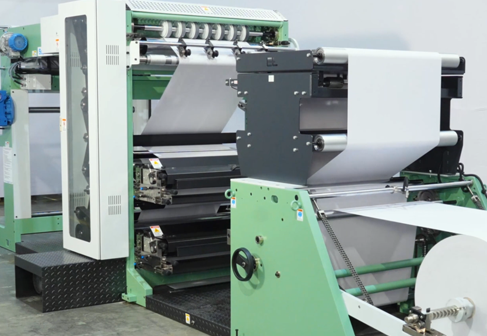

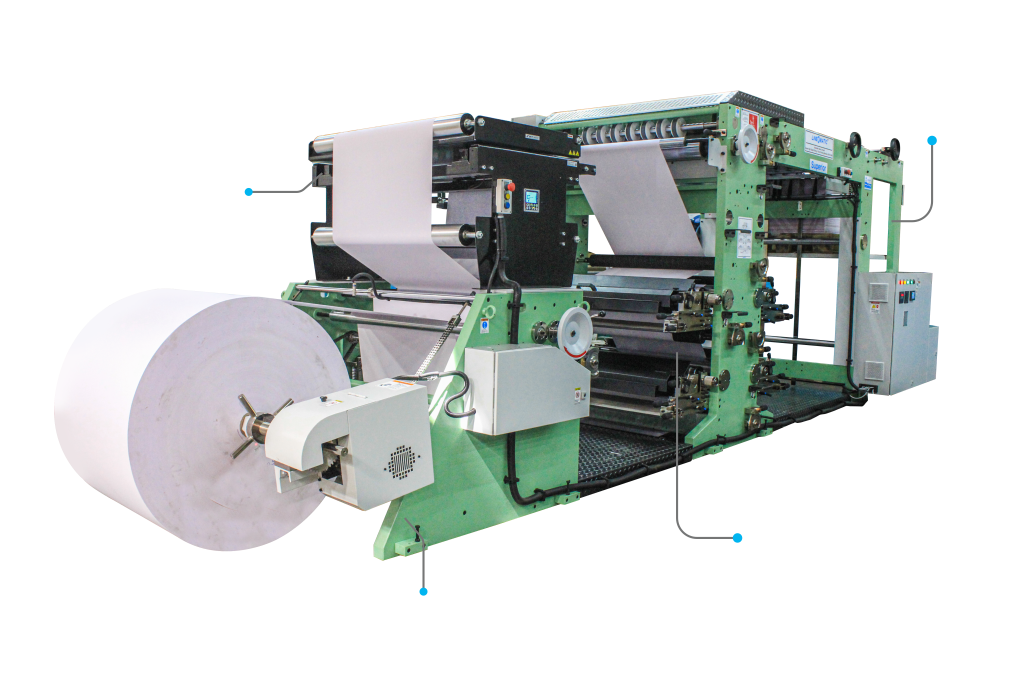

Automatic Reel to Sheet Ruling/Flexo Printing Machine

SHS 91 S | SHS 104 S | SHS 120 S

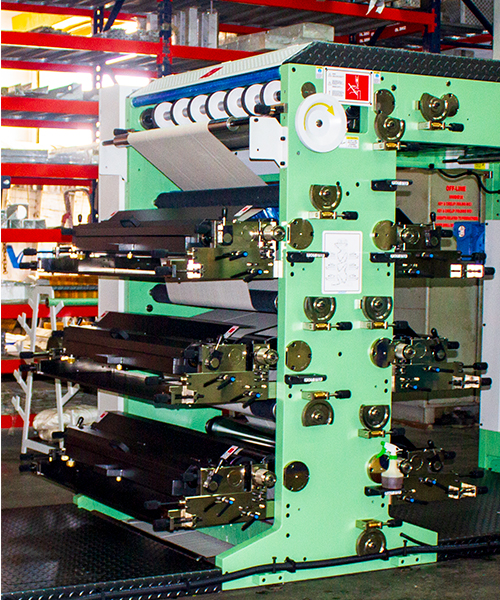

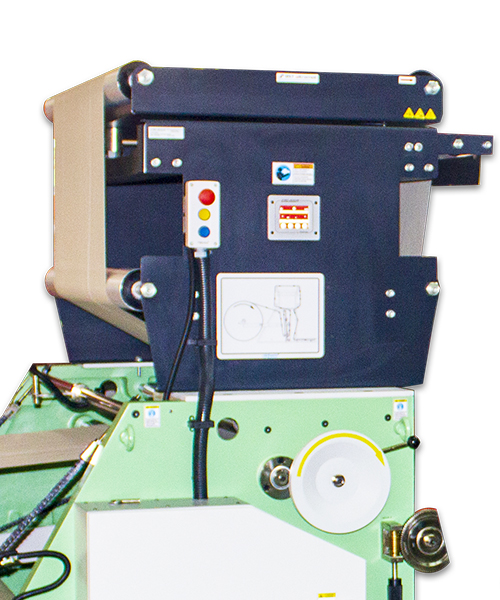

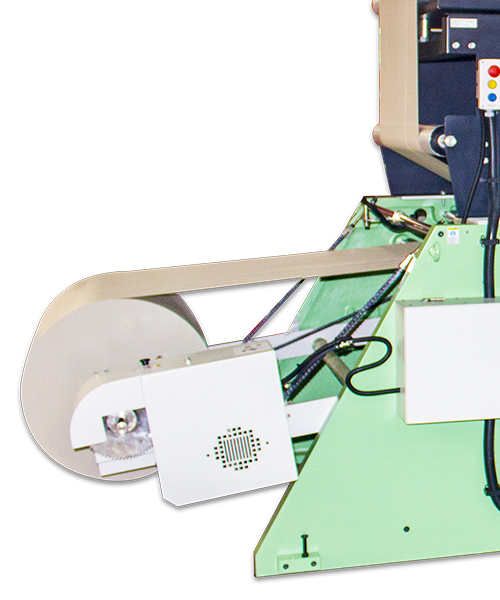

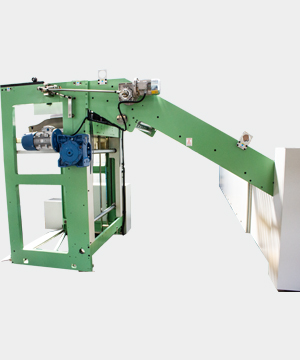

The Automatic reel-to-sheet Ruling/Flexo Printing Machine consists of a shaft-based motorized reel stand with a digital web guide, a 2-color printing tower, a pile delivery station with a motorized vibrating jogger, and a control panel with an HMI. It is suitable for rule or flexo printing on paper in 2 colors. The machine delivers ruled/flexo printed sheets in cut length as per the requirement directly from the paper reel.

IDEal for
Advantages
REC. ADD-ONS

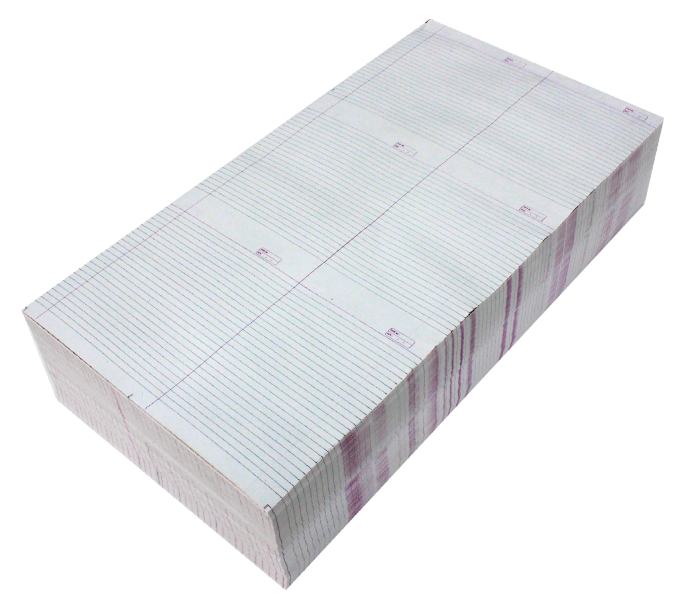

End Products

Ruled/Printed Sheet Manufacturers Needing

High output
High-quality end products

Low production cost
Minimum workforce
Consistent performance
Excellent quality output
Longer life
Easy to operate & low maintenance cost

3rd color (Flexo / Disc)
Air Shaft
Smart Mark Unit
Tab Inserter
Center Slitter
Micro Perforation
Automatic Ink Circulation System

Technical Specification

Model	SHS 91 S	SHS 104 S	SHS 120 S
Web Speed* (meters/minute)	300	300	300
Reel Width (mm)	250 to 910	250 to 1040	250 to 1200
Reel Diameter (mm)	1200	1200	1200
Core I.D. (mm)	70 to 110	70 to 110	70 to 110
Reel Weight (kgs.)	900	1100	1300
Printing Tower	2 colors on each side	2 colors on each side	2 colors on each side
Ruling / Printing Width (mm)	900	1030	1190
Cutting Length (mm)	290 to 450	290 to 450	290 to 450
	(Variation of 5 mm)	(Variation of 5 mm)	(Variation of 5 mm)
	460 to 900	460 to 900	460 to 900
	(Variation of 10 mm)	(Variation of 10 mm)	(Variation of 10 mm)
Stack Height (mm)	1600 (28 reams)	1600 (28 reams)	1600 (28 reams)
Paper (GSM)	42 to 200	42 to 200	42 to 200
Rec. Floor Space (L x W x H) (meters)	13 x 7 x 3	13 x 7 x 3	13 x 7 x 3
* Machine speed will depend upon reel width and GSM of paper.
